E-Z Fender Mounting System for Trucks

ez fender mounting system
  • Dyna-Light and Diamond Back CR’s have been tested by an independent engineering firm for maximum uniformly distributed static load.

  • Dyna-Tube Extrusion, aerodynamic radius corner shape, high strength – low weight.

  • New T-Beam extrusion provides for a better weight to strength ratio, for improved load resistance.  This allows Merritt to decrease T-beam profile by one inch, allowing greater swing room clearance.

Order # Description Shipping Weight
579-2 Mounting System (Shipped as a set – 2 per box) 7 Lbs.
download pdf for this product

E-Z HD Fender Mounting Kit

  • Proven in the toughest environment in the world. Ideal for heavy-duty trucks, thriving in harsh environments.

  • Adapt a bracket to your application- two models to choose from. Light, very strong and highly durable.

  • Normal hand tools can be used for installation. Each Heavy Duty Fender Mounting kit will mount two quarter fenders or one single axle fender. Can be used to mount a full fender using an E-Z Mount adjustable center bracket.

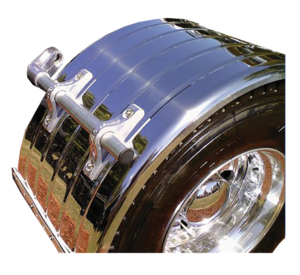

ez hd head bracket

LELOX E-Z MOUNT

Order # Description Shipping Weight
5167-2 Two mounting tubes, Four cast, curved fender brackets and mounting hardware 24 Lbs.
5168-2 Two mounting tubes, Four cast, straight fender brackets and mounting hardware 24 Lbs.
download pdf for this product

E-Z Mount Fender Brackets

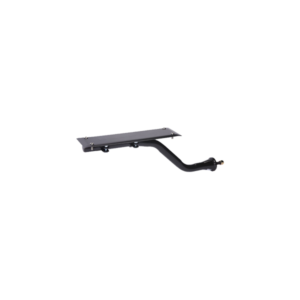

adjustable ez mount fender bracket, black
stainless ez mount fender bracket post
black ez mount fender bracket post

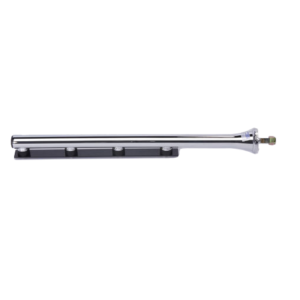

straight stainless ez mount fender bracket

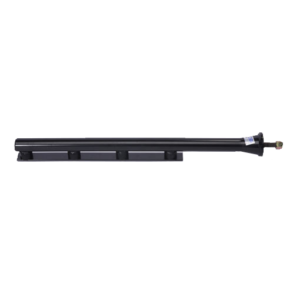

straight ez mount fender bracket
  • 6 Models to choose from, allowing you to adapt a bracket to your application. 3 Adjustable models, giving you greater flexibility.

  • All E-Z Fender Mount brackets have the time tested single mounting bolt. Very Quick- Very Easy!

  • 3 Straight models available with rubber spacers, which provide 1″ clearance between the fender and bracket, allowing dirt and gravel to pass through… makes cleaning easier.

  • All hardware is supplied with each bracket for mounting.

E & Z MOUNT FENDER BRACKET

adjustable ez fender mounting bracket dimensions
E & Z Fender Bracket – Black – 4″ Model
Order # Description Shipping Weight
567 Black – 4″ Model 12 Lbs.
adjustable ez fend mounting bracket
E & Z Fender Bracket – Black – 8″ Model
Order # Description Shipping Weight
568 Black – 8″ Model 12 Lbs.
adjustable ez fend mount bracket dimensions
E & Z Fender Bracket – Black – 10″ Model
Order # Description Shipping Weight
569 Black – 10″ Model 12 Lbs.

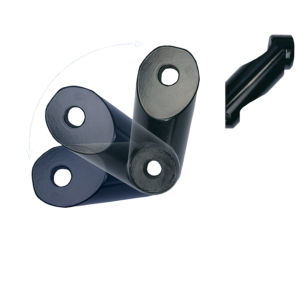

ez fend mount bracket dimensions
Mounting Post – Zinc Plated
Order # Description Shipping Weight
573-2 Zinc Plated 2.5 Lbs.
ez fend mount bracket dimensions
Post Mount Bracket – Chrome
Order # Description Shipping Weight
574 Chrome 8 Lbs.
ez fend mount bracket dimensions
Straight Bracket
Order # Description Shipping Weight
575 Black 12 Lbs.
576 Chrome 12 Lbs.
download pdf for this product

Attention

POST MOUNT BRACKET

  • Allows the installer to adjust the height of a straight bracket (like EZ Mount bracket).
  • Turn your 574 straight bracket into an adjustable mount, for those installations where nothing seems to work.
  • Fits the new style air ride suspension systems.  Bolts directly into the suspension hanger, eliminating hole drilling in the frame.
  • Delivers a full 3″ sweep to allow you to find the best mounting position.
  • Made from hardened billet steel for long life.
  • Shipped in pairs, stocked in 12 Merritt warehouse locations.
  • To be used with part numbers 574 Post Mount Bracket and 573 Post.

POST MOUNT BRACKET

OFF-SET CHASSIS PIPE

Offset Pipe Fender Bracket is designed to mount outside any fender.
Off-set chassis pipe mounts solidly to frame with single grade 8 bolt.

Installation Notes:

  • It is necessary to bend TAB Lock-washers downward into the bolt to prevent unwinding.
  • Torque 5/8 Nyloc nuts to 150 ft/lbs.

CAST ALUMINUM MOUNTING BRACKET ASSEMBLY

Cast Aluminum Brackets mount to the fender as shown, secure the Grub Screw to the pipe shaft, making those hard installations a breeze.

Installation Notes:

  • Mounting bracket backing plate can be used as a template to drill holes in fender.
  • When installing the 3/8″ x 2 1/4″ bolts, it is recommended that the bolts are not over tightened, 10inch lbs. torque.
  • Secure mounting bracket to chassis pipe/tube using “Grub Screw” and 3/8″ conelok nut.

ADJUSTABLE FENDER BRACKETS

  • All three Z & Z fender brackets are adjustable in length from 27″ to 30″.
  • Stainless steel cap screw mounting plate bolts are included.

Straight Fender Brackets

  • Mounts solidly to frame with single grade 8 bolt
  • 574 Mounts to the existing stub shaft or the 573 post, making those hard installations easier
  • Bracket Mounts 1″ off Fender so rocks and gravel can pass through

Installation Notes:

  • Backing plate is designed to be used as a template to drill holes in fender.
  • When installing the 3/8″ x 2 1/4″ bolts, it is recommended that the bolts are not over tightened, 10inch lbs. torque.
  • It is necessary to bend TAB Lock-washers downward into the bolt to prevent unwinding.
  • Torque 5/8 Nyloc nuts to 150ft/lbs.
