Merritt’s Wide Selection of Semi-Truck Storage Boxes

When it comes to storage boxes for semi-trucks, Merritt Aluminum Products is the name to trust. We offer a wide selection of tool, battery, DEF, and other storage boxes designed to keep truckers’ must-have items while on the road. Our boxes are made of high-grade aluminum alloy, delivering lightweight and durability.

Moreover, we simplify the purchase process for you. Whether you’re a truck driver, owner, or a parts manager, you can place an order by giving us a call or sending us an email. We’ll dispatch your request to a Merritt warehouse nearest to you for quick shipping so that you can enjoy the Merritt advantage right away.

  • Utilize unused frame space and add additional storage areas.

  • Built from aluminum for low weight, yet high strength, Merritt offers heavy duty designs on all storage boxes for a longer life.

  • 18 Different models to make the most of your frame space and add additional storage areas.

  • Saddle Boxes now available with optional internal chain rack or dividers.

  • Saddle Boxes available with or without step options.

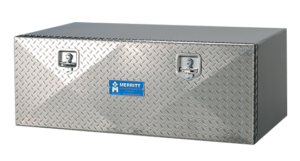

Underbody Tool Boxes & Cam Lock Boxes

smooth single door tool box
diamond plate single door tool boxes
cam lock box
  • Piano style door hinge

  • Stainless Steel doors are available by special order

  • Custom styles and designs are available to meet specific needs

  • Door lanyard option available

View Options & Specifications

Battery Boxes

  • Five styles to choose from, to aid in your installation process.

  • Four side frame mounts and one in-frame mount.

  • Made from a strong, yet light-weight Aluminum alloy, for long life and weight savings.

  • Side frame units can mount using a frame drill bracket or a No-Drill kit that does not need to drill the frame. This allows for a savings in installation time.

  • All models of battery boxes are stocked in various Merritt Warehouse locations.

  • In-Frame box does not require any frame drilling to mount, saving installation time. Comes with mounting kit.

  • All boxes come with or have an optional battery hold down kit. You do not need to spend time on how to mount the batteries.

  • Battery boxes will hold two, four or six group 31 batteries. High-grade aluminum alloy construction for low weight, yet high strength to deliver longer box life.

View Options & Specifications

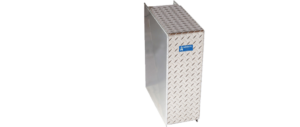

battery box, 3552

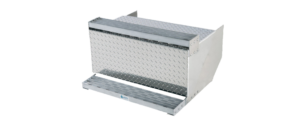

battery box, 490

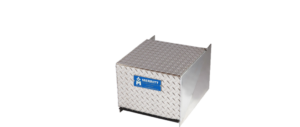

battery box, 3521

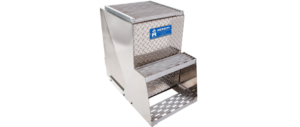

battery box, steps, 35

S-Series Stackable Boxes

smooth single door s-series box
s box, diamond plate, single door
smooth double door s-series box
  • Mount underbody, on top of the deck, side by side – the door will open.

  • Constructed of high strength/low weight aluminum.

  • 42 Standard base models

  • Bullet style hinge with 1/4″ S/S center pin.

  • Custom sizes and designs are available to meet specific needs.

  • Stainless Steel doors are available by special order.

View Options & Specifications

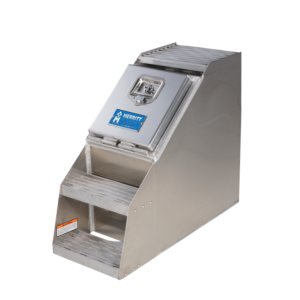

Saddle Boxes / Step Boxes

  • Saddle Boxes now available with optional internal chain rack or dividers.

  • Saddle Boxes available with or without step options.

View Options & Specifications

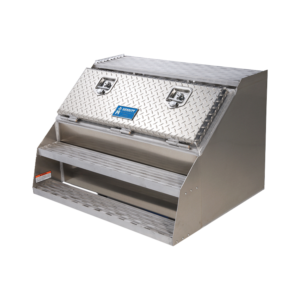

storage saddle box
storage saddle box

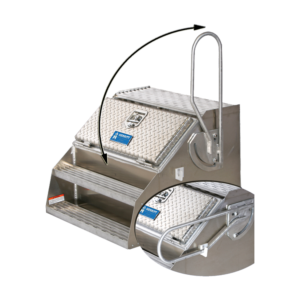

folding handle storage box
saddle box, storage box

Cab Access Boxes

cab access box, passenger

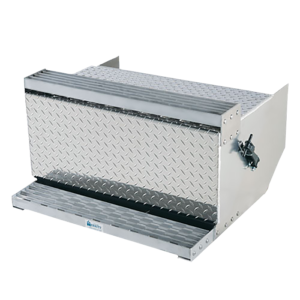

cab access box, driver side
  • High-grade aluminum alloy for low weight & high strength, delivering longer box life.

  • 6 Models for more application choices, all offer the same Merritt tool box features that are time proven designs for a longer product life, less life cycle cost.

  • Extruded door frame & automotive door seal on the storage box give a more water resistant seal and added strength.

  • Bright Aluminum & Stainless Steel door and lid are available as a custom option – Mounting brackets available to mount on any truck with available space.

View Options & Specifications

Black Steel Bawer Boxes

  • Lockable T-Handles.

  • Single piece main structure for a stronger box, less welds.

  • Dust cap on door locks.

  • “Automotive” style weather stripping.

  • Stocked throughout the Merritt warehouse system.

  • Merritt service that the industry has come to expect.

  • Dealer locations throughout North America.

View Options & Specifications

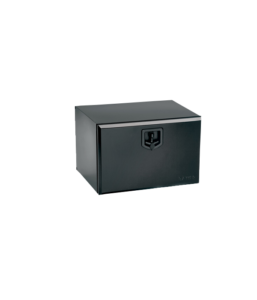

bawer box short

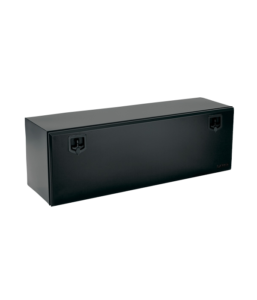

bawer box long

Poly Boxes

black dog box closed
Kompos-it box, sixty percent volume reduction
Kompos-it box, open
  • Polyethylene Storage Boxes from Lago

  • Black Dog Tool Boxes

  • KOMPOS-IT Boxes for Modular Truck Tool Storage

View Options & Specifications

DEF Storage Boxes

  • You can store four one gallon jugs or two 2.5 gallon jugs.

  • Mounting Kit is welded inside and can be mounted from either end.

  • Utilize unused frame space and add outside storage for your DEF Products.

  • Heavy Duty designs on all DEF boxes for longer life.

  • Utilizing Merritt’s “Bullet” hinge with 1/4″ S/S pivot, for no trouble – long life.

def storage box, louver
def storage box, without louver

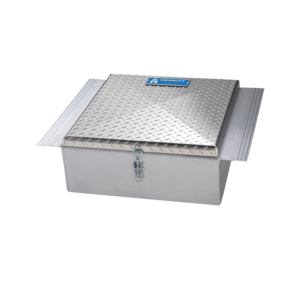

Between-the-Frame Tool Boxes

saddle box, between
between the frame storage box
  • Easy installation using clamps – no drilling of the frame.

  • Mounting Kit included.

  • Lockable latching system.

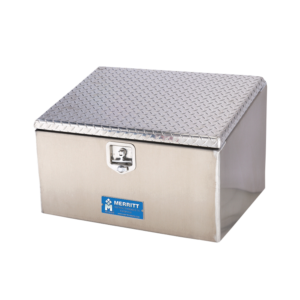

Logger Boxes

  • Rugged diamond plate lid.

  • Easy cross frame mounting kit is included. Can be side-framed mounted using the #118 mounting kit

  • Sloped, top opening door.

logger box, storage boxes
logger box illustration with dimensions

Connection Boxes

connection plate, diamond plate
smooth plated connector accessory
  • Polished finish or Diamond Plate Aluminum

  • Cross frame mount or can be mounted in the Merritt Dyna-Deck top mount, for a “custom” look.

  • New fixed handle, add to your Frame Step or Saddle Box.

Upright Utility Boxes (Custom Order Only)

  • Extruded door frame, full perimeter automotive door seal for a water resistant closure

  • Heavy duty design for a longer life

  • Aluminum construction for low weight, yet high strength, no rust

  • Two sizes to choose from, to fit your needs

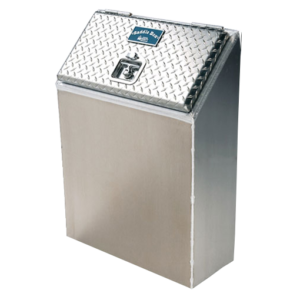

upright utility box

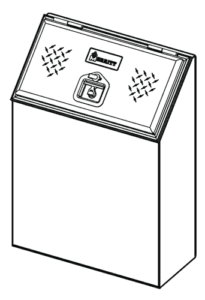

utility box illustration

Fairing Boxes

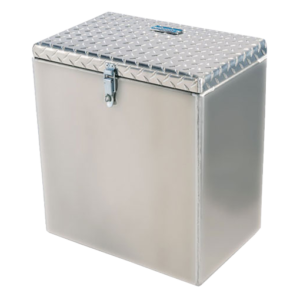

fairing box
fairing box diagram illustration
  • Designed to fit between the side fairing panel & truck frame

  • Unique mounting kit allows for easy installation without removing side fairings

  • Extruded door frame with automatic door seal for a water resistant closure

SMOOTH DOOR SADDLE BOXES

Order # Description Shipping Weight
450 22x21x12 27 Lbs.
452 23 1/2 x 28 1/2 x 12 with step 34 Lbs.
460 22x21x18 32 Lbs.
462 23 1/2 x 28 1/2 x 18 with step 42 Lbs.
470 23x21x24 43 Lbs.
472 23 1/2 x 28 1/2 x 24 with step 56 Lbs.
480* 23x21x36 56 Lbs.
482* 23 1/2 x 28 1/2 x 36 with step 76 Lbs.
488 23.5″ x 28.5″ x 30″ SM DR
478 22″x21″x30″ SM DR BRIT
*Model 117 or 118 Mounting Kit Required

DIAMOND PLATE DOOR SADDLE BOXES

Order # Description Shipping Weight
451 22x21x12 27 Lbs.
453 23 1/2 x 28 1/2 x 12 with step 34 Lbs.
461 22x21x18 34 Lbs.
463 23 1/2 x 28 1/2 x 18 with step 43 Lbs.
471 23x21x24 43 Lbs.
473 23 1/2 x 28 1/2 x 24 with step 57 Lbs.
481* 23x21x36 57 Lbs.
483* 23 1/2 x 28 1/2 x 36 with step 77 Lbs.
487 23.5″x28.5″x30″ DP DR
477 22″x21″x30″ DP DR
*Model 117 or 118 Mounting Kit Required

SADDLE BOX DIVIDER

Order # Description Shipping Weight
485-1 Saddle Box Divider Set, 12″ 2 Lbs.
485-2 Saddle Box Divider Set, 18″ 2 Lbs.
485-3 Saddle Box Divider Set, 24″ 2 Lbs.
485-4 Saddle Box Divider Set, 36″ 2 Lbs.

CHAIN RACK KITS

Order # Description Shipping Weight
486-1 Saddle Box Chain Rack, 12″ 1 Lbs.
486-2 Saddle Box Chain Rack, 24″ 1 Lbs.
486-3 Saddle Box Chain Rack, 24″ 1 Lbs.
486-4 Saddle Box Chain Rack, 36″ 2 Lbs.

SADDLE BOX FOLD AWAY HANDLE

Order # Description Shipping Weight
3518 Folding Handle R/H 11 Lbs.
3519 Folding Handle L/H 11 Lbs.
3524 Fixed Handle R/H 5 Lbs.
3525 Fixed Handle L/H 5 Lbs.

BETWEEN-THE-FRAME TOOL BOXES

Order # Description Shipping Weight
253 22x9x24 Dia. Plate Door with No Drill Mounting Kit 36 Lbs.

LOGGER BOX

Order # Description Shipping Weight
229 20x23x30 Logger Box with Cross Frame Mount Kit 54 Lbs.

CONNECTION BOX – CROSSFRAME OR DYNA-DECK MOUNT

Order # Description Shipping Weight
3529 Connection Box Polished Aluminum 18 Lbs.
3530 Connection Box Bright Tread 18 Lbs.
3531 Polished, with round light holes 18 Lbs.
3532 Polished, with oval light holes 18 Lbs.
3533 Diamond plate, w/ 2″ round light holes 18 Lbs.
3534 Diamond plate w/oval light holes 18 Lbs.
Includes Mounting Hardware / *Deck Cover Not Included*Add to 432, 433, 434 or 435 Deck Covers

UPRIGHT UTILITY BOXES (CUSTOM ORDER)

Order # Description Shipping Weight
474 33″ x 10.5″ x 24″ 35 Lbs.
484 33″ x 10.5″ x 36″ 47 Lbs.

FAIRING BOX

Order # Description Shipping Weight
254 20″ x 18″ x 12″ 32 Lbs.
255 20″ x 18″ x 18″ 37 Lbs.
256 20″ x 18″ x 24″ 43 Lbs.
download pdf for this product

What are the Benefits of Truck Boxes?

Semi-trucks usually have flatbed or trailer to transport cargo, but they don’t often have enough storage areas for truckers’ must-have items while they’re on the road. This is where storage boxes come in.

For drivers. With storage boxes mounted on their trucks, drivers no longer have to worry where to place their tools, extra batteries, DEFs, and other items securely. They can change flat tires, refill exhaust fluids, or replace batteries on the roadside or at the truck stop with ease, preventing any delay in their schedule.

For truck owners. Storage boxes are a cost-effective option to ensure drivers have the items they need to endure long hours on the road. These boxes keep tools and gears from being stolen or damaged by harsh temperatures if left on the flatbed while the truck is moving or at a rest area. Unlike retrofitting trucks with storage areas, Merritt boxes are quick, easy, and affordable to install, giving owners cost and time savings.

For parts managers. Truck boxes are a great offering for a truck dealership or as an auto shop product. From tool and cab access boxes to battery and DEF boxes, you have many options to offer your clients. And if you partner with a reliable supplier like us, you can focus on making sales than tracking down boxes each time a client requests one installed on their truck before purchase or for an upgrade.

What’s the Merritt Difference?

  • Legendary toughness. Our boxes are some of the strongest in the industry. We use high-grade aluminum alloy to deliver truck storage boxes that are lightweight but long-lasting.
  • Good-looking products. Often referred to as “truck jewelry,” our truck boxes are finished in a smooth or diamond plate and complete with steel latches, giving semi-trucks a sleek, refined look.
  • Impressive selection. Our selection of boxes includes cab access, cam lock, tool, battery, DEF, and other storage boxes. We also carry outstanding truck boxes from the popular brand, Lago.
  • National reach. With over 60 years in the business, we have built warehouses across the US. It allows us to ship anywhere in the country in just a few days and without any hassle.

If you need help selecting the right truck box for your needs or applications, feel free to contact us. Our friendly representatives will guide you through your order and purchase process.
