What Is a Deck Plate on a Semi-Truck?
Walk behind any Class 8 tractor and you’ll see a metal platform bridging the frame rails directly behind the cab. That surface is the deck plate (also called a deck …
Walk behind any Class 8 tractor and you’ll see a metal platform bridging the frame rails directly behind the cab. That surface is the deck plate (also called a deck cover or catwalk). Its primary jobs are:
- Sure footing – Provides a slip-resistant, DOT-approved (Dyna-Deck model) walk surface for drivers and technicians while they connect air-lines, inspection hoses, or hydraulic quick-couplers.
- Component protection – Shields wiring harnesses, air hoses and DEF lines routed between the rails from kicked-up road debris.
- Storage real estate – Supports hose racks, chain hangers, and other behind-cab accessories without sacrificing ground clearance.
Why Aluminum Beats Steel for Deck Plates
| Advantage | Aluminum Deck Plate | Steel Catwalk |
|---|---|---|
| Weight | Up to 40 lb lighter on a 60″ span— more payload, better MPG | Adds unnecessary weight over the drives |
| Corrosion resistance | Natural oxide layer; no paint touch-ups | Requires paint/galvanizing; prone to rust at welds |
| Service life | Long-term durability; no rust bleed on polished tanks | Rust, pitting, eventual replacement |
| Recyclability | 100 % recyclable, high scrap value | Lower scrap value |
Merritt Deck-Plate Options
| Product | Format & Lengths | Key Features | Best For |
|---|---|---|---|
| Diamond Plate Deck Covers | One-piece panels, 24″–96″ | Classic polished look; optional stiffener bars | Fleets wanting simple install & clean styling |
| Dyna-Deck Modular Deck Covers | Interlocking planks, 18.5″–74″ each (up to 13’1 with end caps) | DOT-approved punched tread, self-draining, top- or flush-mount, quick field length changes | Operators who need a walk surface they can resize or replace in sections |
Both styles are engineered from aerospace-grade aluminum and ship with mounting hardware.
Choosing the Right Deck Plate
- Measure available frame length. Account for air-slide clearances and suspension articulation.
- Confirm walk-surface requirement. If you routinely climb behind the cab, pick a DOT-approved tread like Dyna-Deck.
- Decide on mounting type.
- Top-mount sits on 3″ risers—ideal when hoses hang under the plate.
- Flush-mount bolts directly to frame flanges for a lower profile.
- Plan for future add-ons. Modular Dyna-Deck planks let you remove a section later to service PTOs or add hose reels without unbolting the entire platform.
Diamond Plate Frame Deck Plate

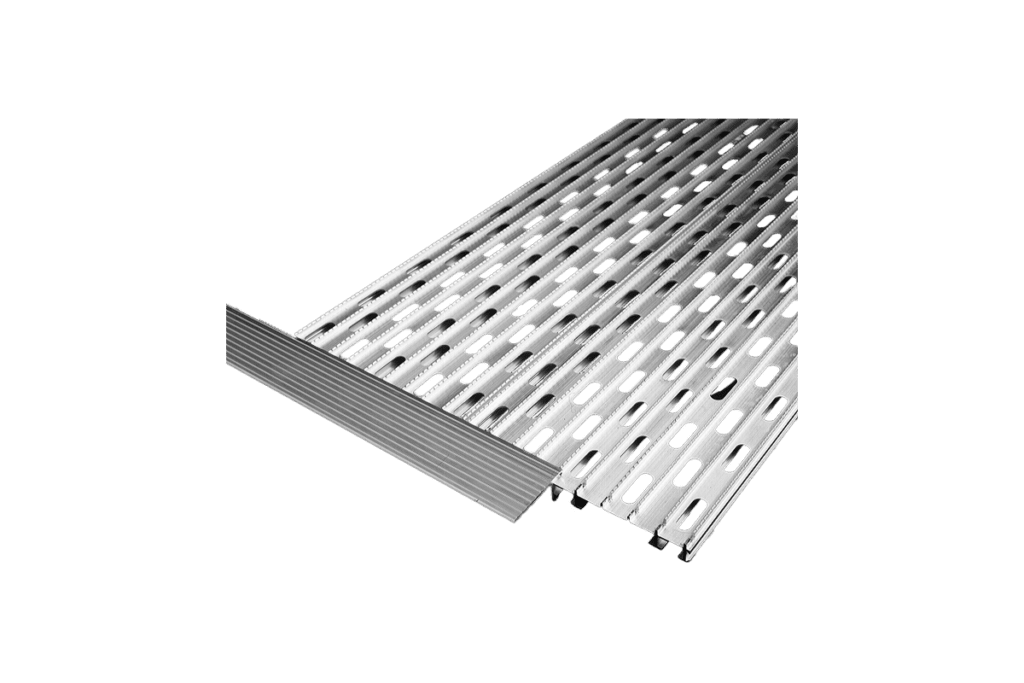

Dyna-Deck Modular Deck Plate
Installation Quick Tips
- Use the supplied stainless T-bolts or Huck rivets to avoid galvanic corrosion.
- Torque fasteners to Merritt spec (45 ft-lb for ½-13 SS bolts).
- Leave a ¼″ gap between plate edge and cab-shock mounts to prevent squeaks on severe bumps.
Frequently Asked Questions
Q: Can I cut a one-piece diamond plate deck to clear an airline?
A: Yes—use a carbide circular saw or plasma cutter, then de-burr and seal the edge with aluminum-safe primer.
Q: Do I need to ground the plate for static electricity?
A: Merritt plates mount with metal-to-metal contact; attach a bonding strap only if your cargo-tank spec calls for it.
Ready to Spec Your Deck Plate?
- Browse both styles: Merritt Aluminum Deck Covers
- Get a quote or custom length: Call 800-525-0107 or email orders@merrittproducts.com—most sizes ship in 5-7 days, custom planks in 10.
Equip your truck with an aluminum deck plate that’s lighter, stronger, and built to protect both your gear and your crew, mile after mile.
