Base Unit Options to Configure Your Cab Rack
INFORMATION
- Dyna-Tube Extrusion, aerodynamic radius corner shape, for low weight. Offset design to accommodate the new style exhaust systems. 4” Foot assembly provides increased trailer clearance, easier mounting and durability.
- New T-Beam extrusion allows Merritt to decrease T-beam profile by one inch, allowing greater swing room clearance.
- 5”uprights require less mounting space.
- Great for storage, one door, two door and full three door enclosures are available. Internal shelves and chain hangers are popular options. Keep your storage items out of the weather and out of sight.
| Order # | Description | Shipping Weight |
|---|---|---|
| 317 | Dyna-Light 68″ x 70″ Radius Corner | 122 Lbs. |
| 3173 | Dyna-Light 68″ x 70″ Radius Corner-Bright Smooth Panel | 122 Lbs. |
| 318 | Dyna-Light 68″ x 76″ Radius Corner | 125 Lbs. |
| 3183 | Dyna-Light 68″ x 76″ Radius Corner-Bright Smooth Panel | 125 Lbs. |
| 319 | Dyna-Light 68″ x 86″ Radius Corner | 130 Lbs. |
| 3193 | Dyna-Light 68″ x 86″ Radius Corner-Bright Smooth Panel | 130 Lbs. |
| 320 | Dyna-Light 68″ x 80″ Radius Corner | 128 Lbs. |
| 3203 | Dyna-Light 68″ x 80″ Radius Corner-Bright Smooth Panel | 128 Lbs. |
| 321 | Dyna-Light 73″ x 78″ For Mack CH series | 133 Lbs. |
| 3213 | Dyna-Light 73″ x 78″ For Mack CH series-Bright Smooth Panel | 133 Lbs. |
| 322 | Dyna-Light 75″ x 86″ Radius Corner | 140 Lbs. |
| 3223 | Dyna-Light 75″ x 86″ Radius Corner-Bright Smooth Panel | 140 Lbs. |
| 3750 | Dyna-Light 80″ x 76″ Tall Cab Application | 176 Lbs. |
| 370 | Diamondback 68″ x 70″ 45°Corner | 122 Lbs. |
| 371 | Diamondback 68″ x 86″ 45°Corner | 130 Lbs. |
| 3172 | Dyna-Light 68″ x 61″ Offset | 115 Lbs. |
| 3182 | Dyna-Light 68″ x 64″ Offset | 117 Lbs. |
| 3192 | Dyna-Light 68″ x 69″ Offset | 120 Lbs. |
| 3202 | Dyna-Light 68″ x 66″ Offset | 118 Lbs. |
| 3212 | Dyna-Light 73″ x 68″ Offset | 126 Lbs. |
| 3222 | Dyna-Light 75″ x 69″ Offset | 133 Lbs. |
Model #317/318/370
Conventional Without a Sleeper
Model #320/319/322/371
Conv. With Sleeper
Model #319/320/322/371
COE With Sleeper
Model #320
COE & Conv. W/Sleeper and Fairing Extensions
ATTENTION
- Must be Installed to Merritt Specifications with a Merritt Mounting Kit.
- Mounting Kits not Included. Reference Mounting Kit
- Merritt Cab Racks are not to be used in conjunction with log trailers or pole trailers.
This cab rack is NOT A SAFETY DEVICE and will NOT PREVENT SERIOUS INJURY
or DEATH from forward shifting cargo as a result of an accident or improper securement.
To prevent SERIOUS INJURY or DEATH:
- ALWAYS secure your cargo in compliance with FMCSA/DOT regulations. See 49 CFR 393 for specific requirements. Be aware of any applicable state motor carrier regulations.
- NEVER consider this cab rack to be part of your cargo securement system. It is not a substitute for any cargo securement device and does not change any of the cargo securement requirements.
- NEVER allow cargo to contact cab rack or use cab rack as a tie down point.
- NEVER haul a log trailer or a pole trailer with this cab rack installed. It is a misuse of the cab rack and is strictly prohibited by Merritt Aluminum Products Company.
- INSPECT cab rack weekly for cracks or damage. If damaged, replace cab rack.
- CHECK torque for all bolts every 90 days.
- Use cab rack for storing chains and equipment. For more information, visit www.merrittproducts.com
- Proper installation of the cab rack is the responsibility of the installer. If you do not have the proper equipment or skill to install the cab rack, take your vehicle to an authorized dealer.
- All cab racks should be installed with an industry accepted mounting system. The mounting system will not prevent serious injury or death from forward shifting cargo as a result of an accident or improper securement.
WARNING - NEVER reuse a mounting kit.
ALWAYS read and follow the Mounting Kit Assembly Instructions to ensure proper installation.
Models and/or Specifications Subject to Change Without Notice.
F.O.B. - Fort Lupton CO, Sacramento CA, Salt Lake City UT, Dallas TX, Houston TX, Kansas City MO, Minneapolis MN, Atlanta GA, Pittsburgh PA, Calgary AB (Canada), Toronto ON (Canada)
General Dimensions
ATTENTION
| Model | A | B |
|---|---|---|
| 317/370 | 68″ | 70″ |
| 318 | 68″ | 76″ |
| 319/371 | 68″ | 86″ |
| 320 | 68″ | 80″ |
| 321 | 73″ | 78″ |
| 322 | 75″ | 86″ |
| 3750 | 80″ | 76″ |
| 3172 | 68″ | 61″ |
| 3182 | 68″ | 64″ |
| 3192 | 68″ | 69″ |
| 3202 | 68″ | 66″ |
| 3212 | 73″ | 68″ |
| 3222 | 75″ | 69″ |
- 7 models to choose from, to allow you flexibility for your needs
- Metal surfaces are Zinc plated for durability and appearance.
- Dyna-Clamps can be mounted with u-bolt up or down position.
- Deluxe kit and Problem Solver kits for the times when items block the frame rail and a clamp will not work. (drilling required & nuts/bolts/washers not included for the side brackets)
- Stress blocks are included to fit between the u-bolt and the Cab Rack leg. This spreads the clamping force over a larger area.
DYNA-CLAMP*
| DYNA-CLAMP* | ||
|---|---|---|
| Order # | Description | Shipping Weight |
| 324 | Dyna-Clamp Kit (17″ U-bolts) For Frame Rails 11″ Deep or Less | 31 Lbs. |
| 325 | Dyna-Clamp Kit (21″ U-bolts) For Frame Rails Over 11″ | 33 Lbs. |
| Designed for most installation needs | ||
PROBLEM SOLVER*
| PROBLEM SOLVER* | ||
|---|---|---|
| Order # | Description | Shipping Weight |
| 323 | Problem Solver Kit (nuts and bolts not included) | 15 Lbs. |
| Designed for difficult installations in and around air tanks, hanger brackets, crossmembers, fueltanks, etc | ||
DELUXE KIT*
| DELUXE KIT* | ||
|---|---|---|
| Order # | Description | Shipping Weight |
| 326 | Deluxe Mounting Kit (17″ U-bolts) For Frame Rails 11″ Deep or Less | 25 Lbs. |
| 327 | Deluxe Mounting Kit (21″ U-bolts) For Frame Rails Over 11″ | 26 Lbs. |
| Designed to give an extra option for problem installations. Two Brackets and Two U-Bolts. | ||
3-POINT MOUNTING KIT*
| 3-POINT MOUNTING KIT* | ||
|---|---|---|
| Order # | Description | Shipping Weight |
| 394 | 3-Point Mounting Kit (17″ U-bolts) For Frame Rails 11″ Deep or Less | 35 Lbs. |
| 395 | 3-Point Mounting Kit (21″ U-bolts) For Frame Rails Over 11″ | 36 Lbs. |
MOUNTING KIT SELECTION: Merritt offers several mounting kits as indicated in the diagram above. The operator is directed to select the best system for the application. If your installation application requires maximum attachment, we refer you to the 394 and 395 kits. If your installation application could be forced to move or slip on the frame, we refer you to any one of the systems 323, 326, 327, 394, 395 and the short foot which all bolt through the frame as part of the mounting.
*All parts zinc coated for corrosion resistance.
Deluxe Option Kit – Full tray w/ Two Locking Chain Racks | Order #328

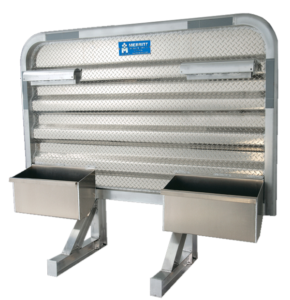

Deluxe Option Kit – 24 Trays w/ Two Locking Chain Racks | Order #363

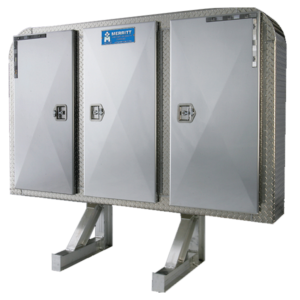

Full Two or Three Door Enclosures | Order #3400 w/ Polished Aluminum Doors | Order #3401 w/ Stainless Steel Doors
Center 373-1 (44 x 10 x 26) | Order #373-1 || Enclosure 375 (44 x 18 x 27) | Order #375
Side Enclosures 9-inch Deep | Order #381
Full Two or Three Door Enclosures, 14-inch O.D./11-inch I.D. | Order #340 (317 = 2 Door | 318, 319, 320, 321, 322 = 3 Door)
3 Door Deep Drop Enclosure (14-inch O.D./11-inch I.D.) | Order #390 (319,320,321 & 322 Models)
Jail Bar Three Door Enclosures (14-inch O.D./11-inch I.D.) | Order #3402
Smooth Enclosures | Order #340 – 3405 | Order #390 – 3905 | Order #3402 – 3406
Jail Bar Window (22-inch W x 25-inch H) | Order #367
E-Z View Window (26 5/8-inch W x 22 3/16-inch H) | Order #369
E-Z View Full Window | Order #386
Offset LSR | Order #3172
Top Mount Light Bar, 14-inch Pad | Order #141-1
Top Mount Light Bar, 51.5-inch Pad | Order #141-2
Beacon Bracket, Fixed | Order #393
Between the Foot Bracket | Order #4870 With Holes | Order #4871 Without Holes
20 3/4-inch x 30 1/2-inch Base Tray | Order #337
20-inch x 24-inch x 24-inch Tuck-Away Box | Order #230
Tray Panel Mount (12-inch x 26-inch) | Order #336
Bracket, Load Light | Order #144
Grab Handle, 25-inch | Order #142
Chain Rack with Locking Cover | Order #147 || Heavy Duty Chain Rack with Locking Cover | Order #1471
Wide Load Sign, Air Operated | Order #3430
Stop & Turn Light Bracket | Order #145 || Order #145-2 : Two round lights for Diamond Back LSR || Order #145-3 : Two oval lights || Order #145-4 : Three rounded lights || Order #145-5 : Three oval lights* || Order #145-6 : One rounded light* * will not fit on models 317 or 318
| Order # | Description | Shipping Weight |
|---|---|---|
| 128 | Chain Rack Without Locking Cover | 5 Lbs. |
| 147 | Chain Rack With Locking Cover | 7 Lbs. |
| 1471 | Heavy Duty Chain Rack with Locking Cover | 9 Lbs. |
| 333 | Tray, 24″ Wide 11.25″ H x 8.5″ D | 13 Lbs. |
| 333-18 | Tray, 18″ Wide 11.25″ H x 8.5″ D | 11 Lbs. |
| 329 | Tray, Full Width 11.25″ H x 8.5″ D | 20 Lbs. |
| 332 | Divider Panel for Full Width Trays | 1 Lbs. |
| 334 | Lid Assembly for 24″ Tray | 4 Lbs. |
| 331 | Lid Assembly for Full Width Tray | 14 Lbs. |
| 330 | Center Compartment w/Lid | 26 Lbs. |
| 336 | Tray Panel Mount 12″ x 26″ | 8 Lbs. |
| 335 | Top Mount Tarp Tray | 20 Lbs. |
| 367 | Jail bar window, 22″ x 25″ | 6 Lbs. |
| 392 | Hose Hanger Assembly | 3 Lbs. |
| 341 | Enclosure Shelf for Model 340 | 7 Lbs. |
| 141-1 | Top mount light bar, 14″ pad | 7 Lbs. |
| 141-2 | Top mount light bar, 51.5″ pad | 19 Lbs. |
| 142 | Grab Handle, 25″ | 1 Lbs. |
| 143 | Load Light with Lexan Cover | 1 Lbs. |
| 144 | Bracket, Load Light | 1 Lbs. |
| 145 | Stop & Turn Light Bracket | 5 Lbs. |
| 413 | Beacon Bracket, Sliding | 9 Lbs. |
| 393 | Beacon Bracket, Fixed | 2 Lbs. |
| 377 | Shelf Center Enclosure, 9″ Deep | 3 Lbs. |
| 378 | JShelf Center Enclosure, 18″ Deep | 6 Lbs. |
| 379 | Retainer, Chain Center Enclosure | 3 Lbs. |
| 380 | Chain Rack, Single | 3 Lbs. |
| 230 | 20″ x 24″ x 24″ Tuck-Away Box | 27 Lbs. |
| 4870 | Between the Foot Bracket, With Holes | 14 Lbs. |
| 4871 | Between the Foot Bracket, Without Holes | 14 Lbs. |
| 3430 | Wide Load Sign | 136 Lbs. |
