Hydraulic Tanks
Crafted from high-quality aluminum for exceptional lightweight performance and superior heat dissipation.

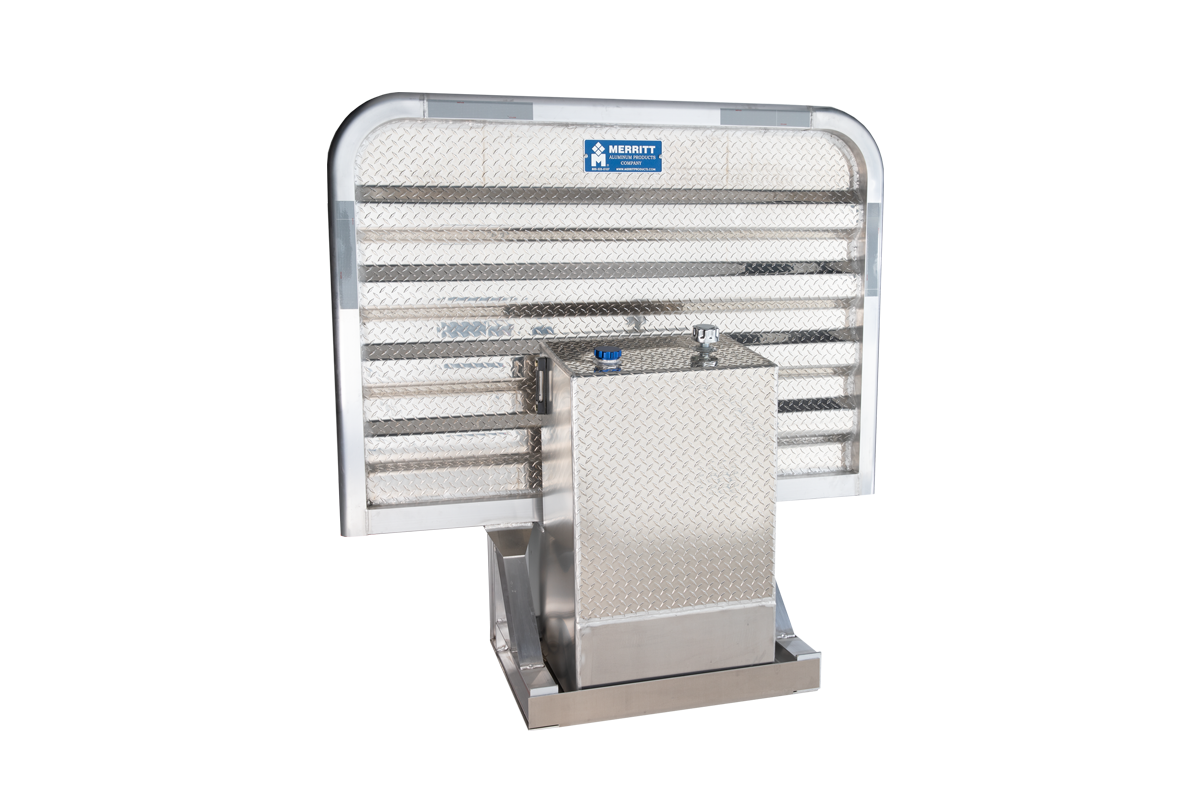

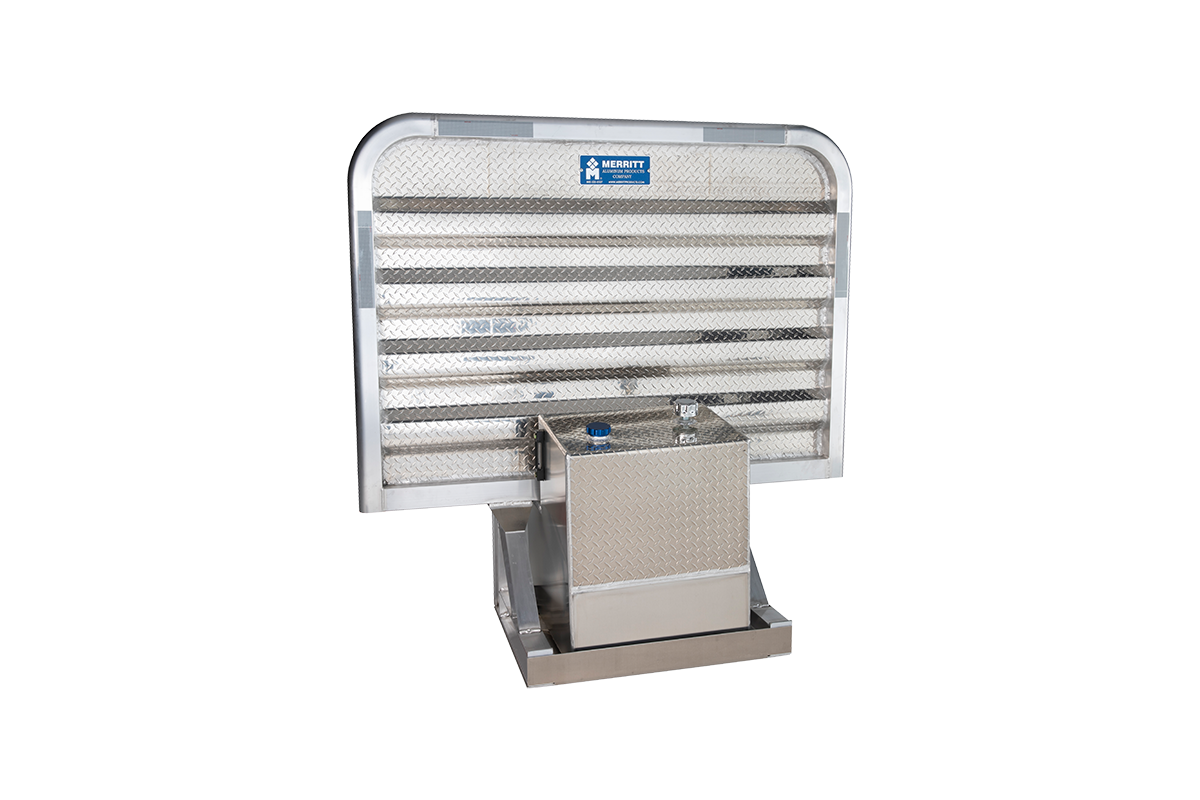

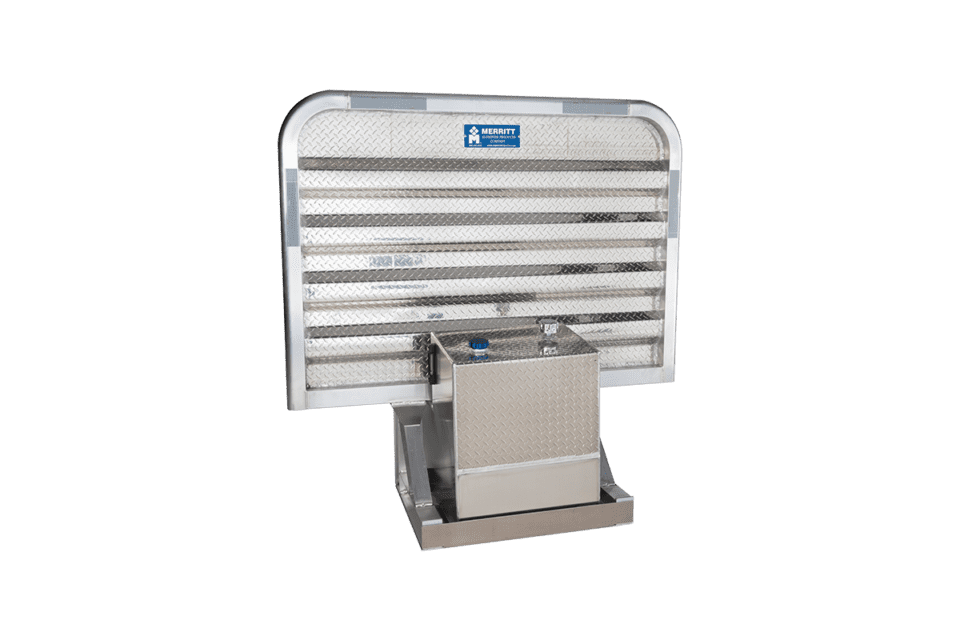

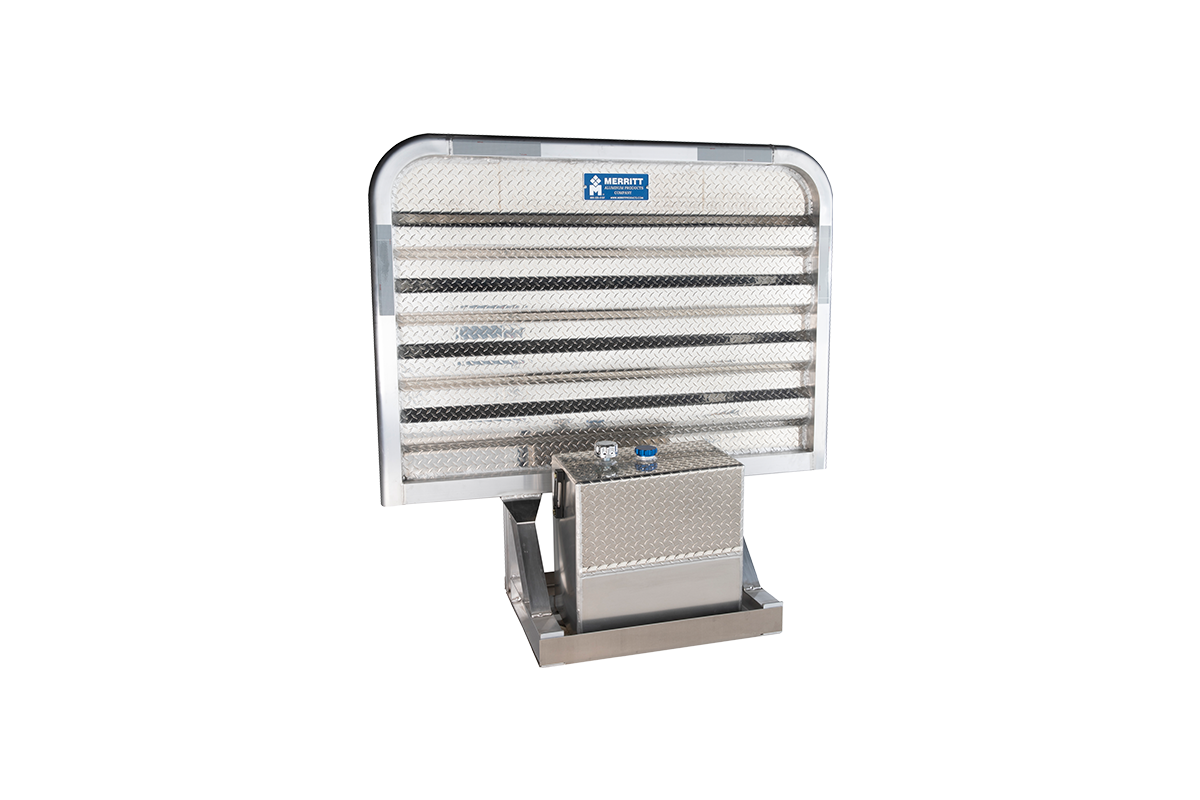

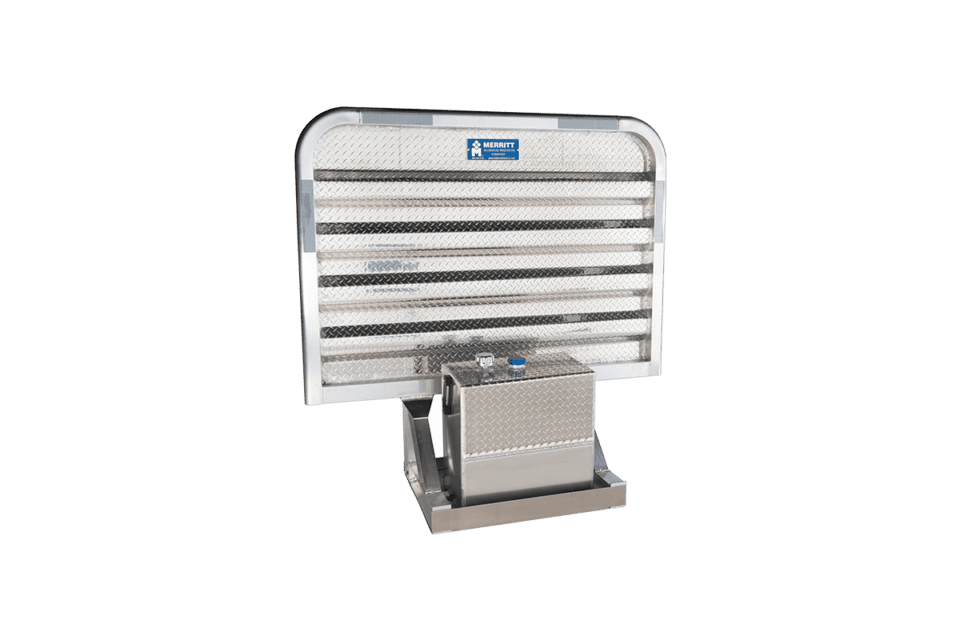

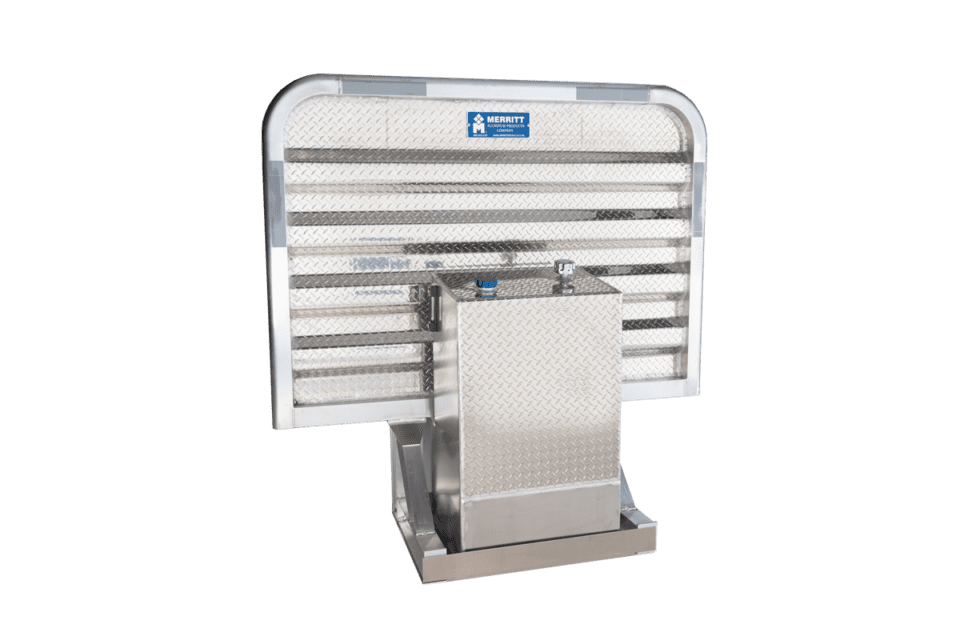

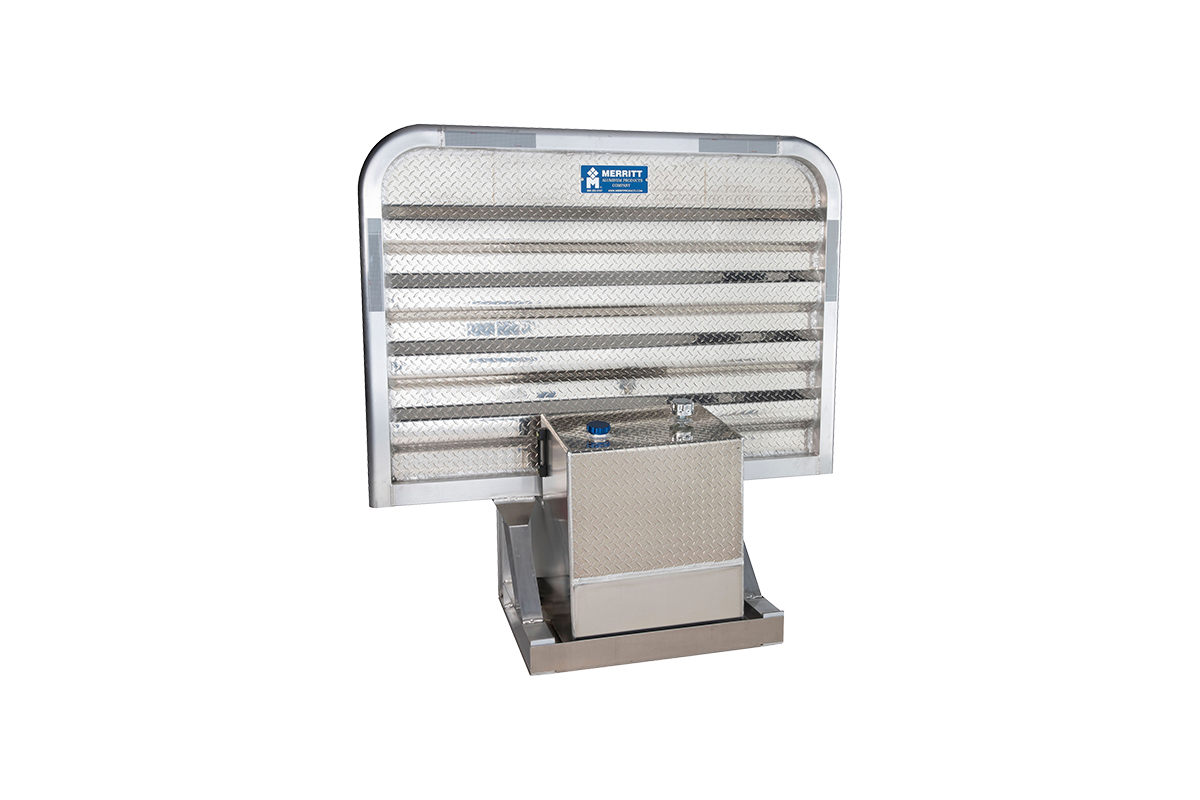

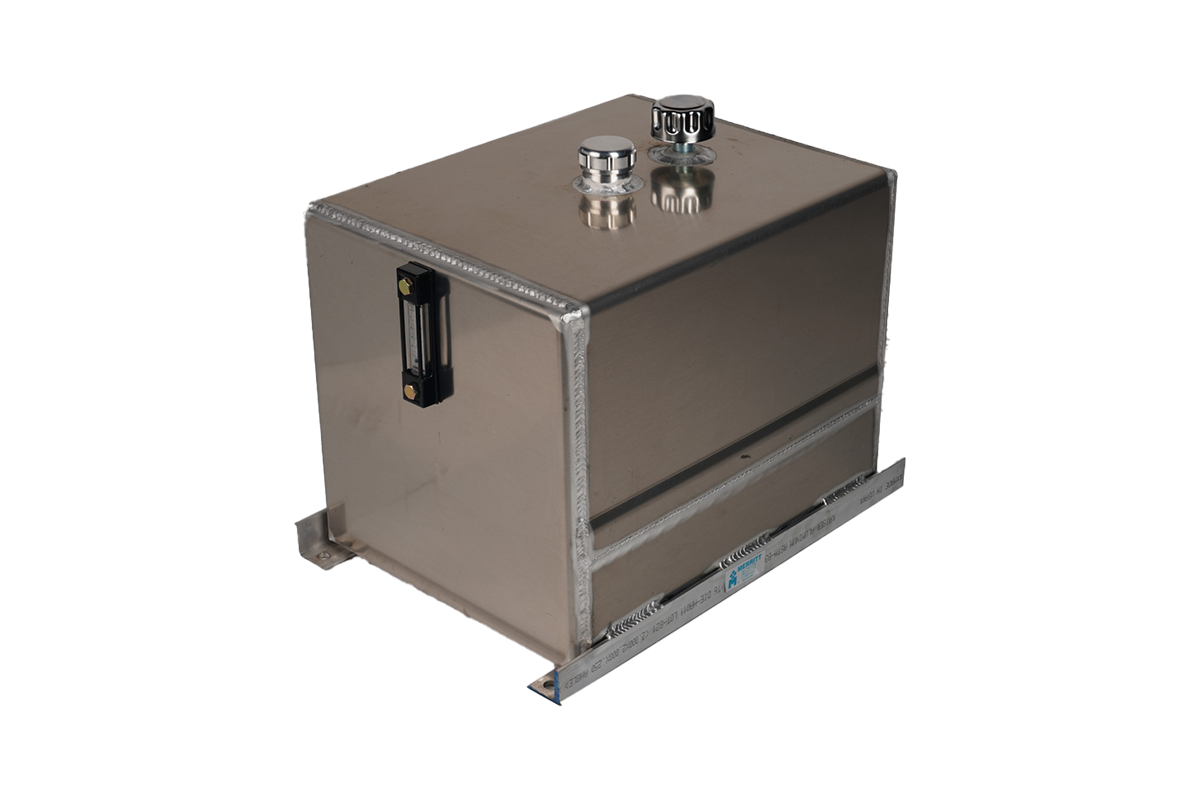

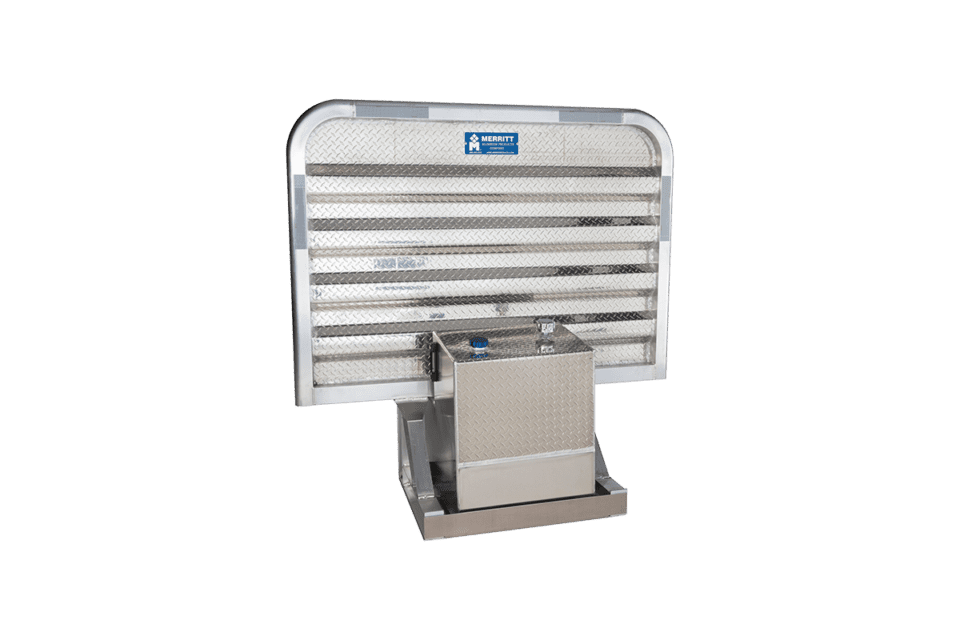

Cab Rack-Mounted Hydraulic Tank

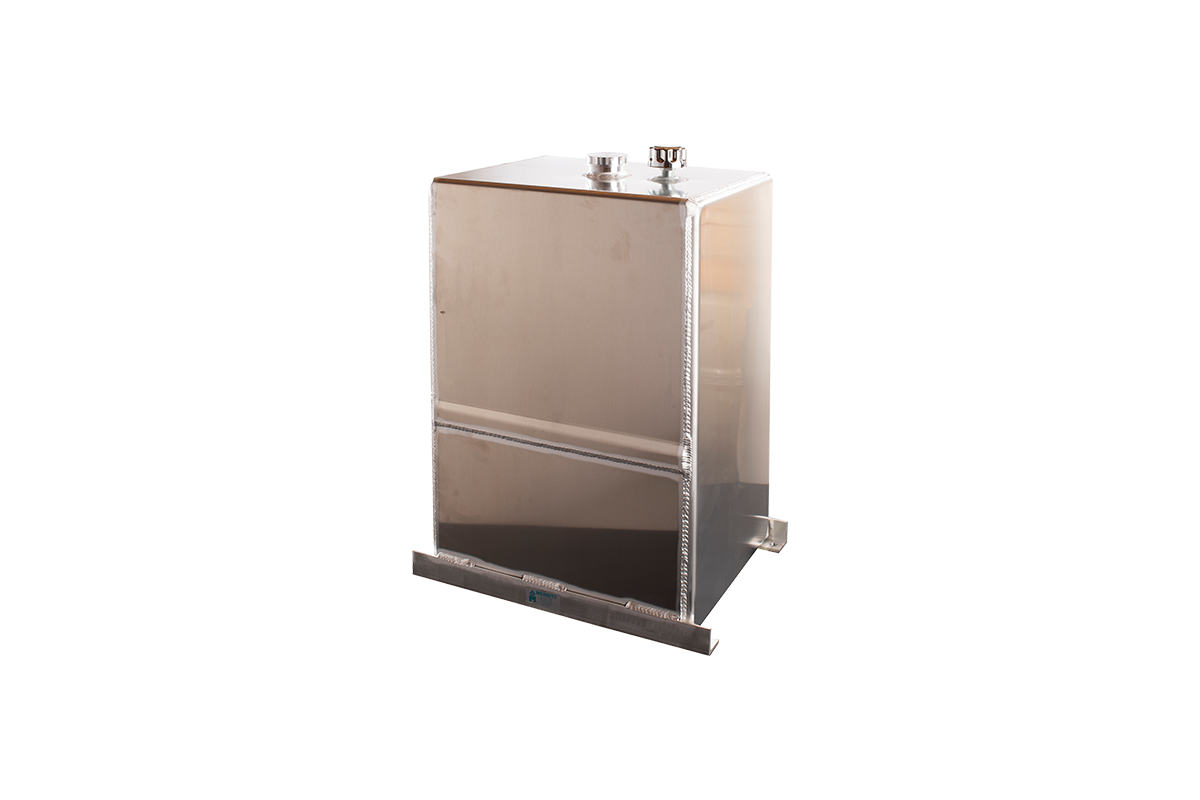

- All Hydraulic Tanks are constructed of durable, lightweight smooth aluminum.
- Space saving design mounts between the feet of a Merritt Cab Rack.
- Long lasting great look.

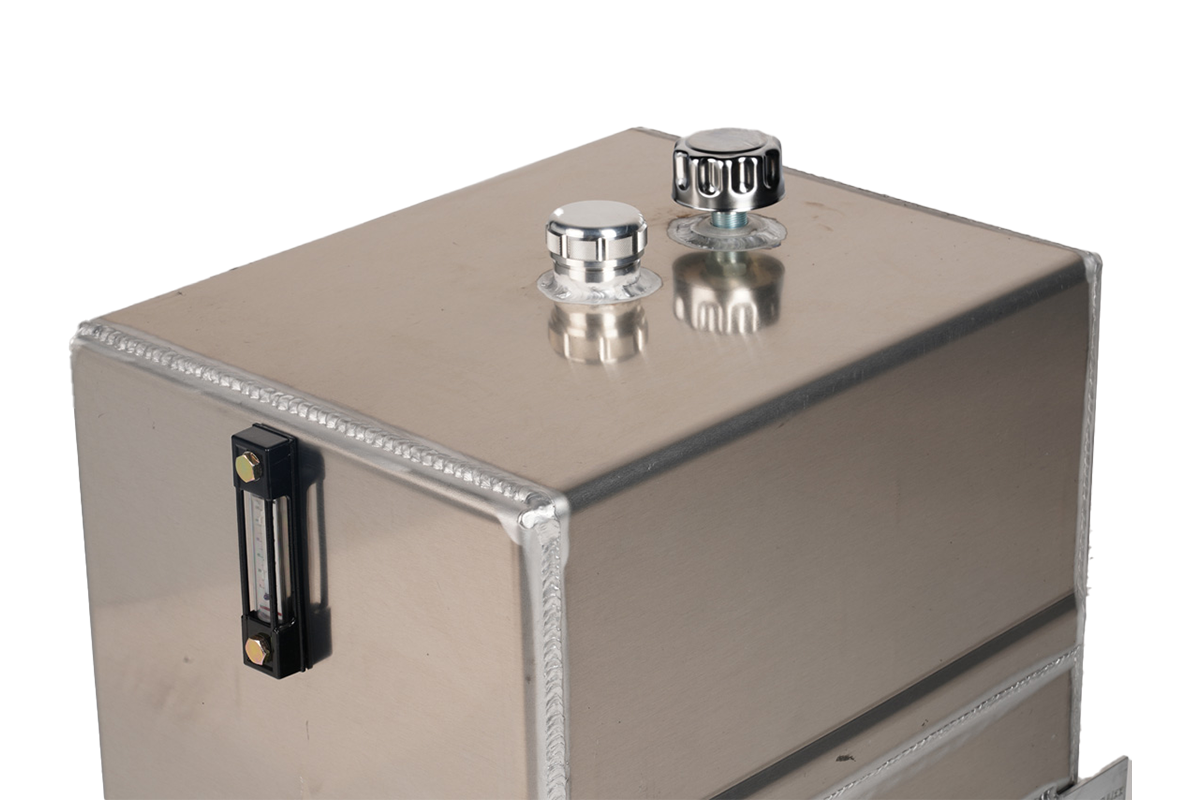

- Fluid level sight gauge with thermometer and metal guard for protection.

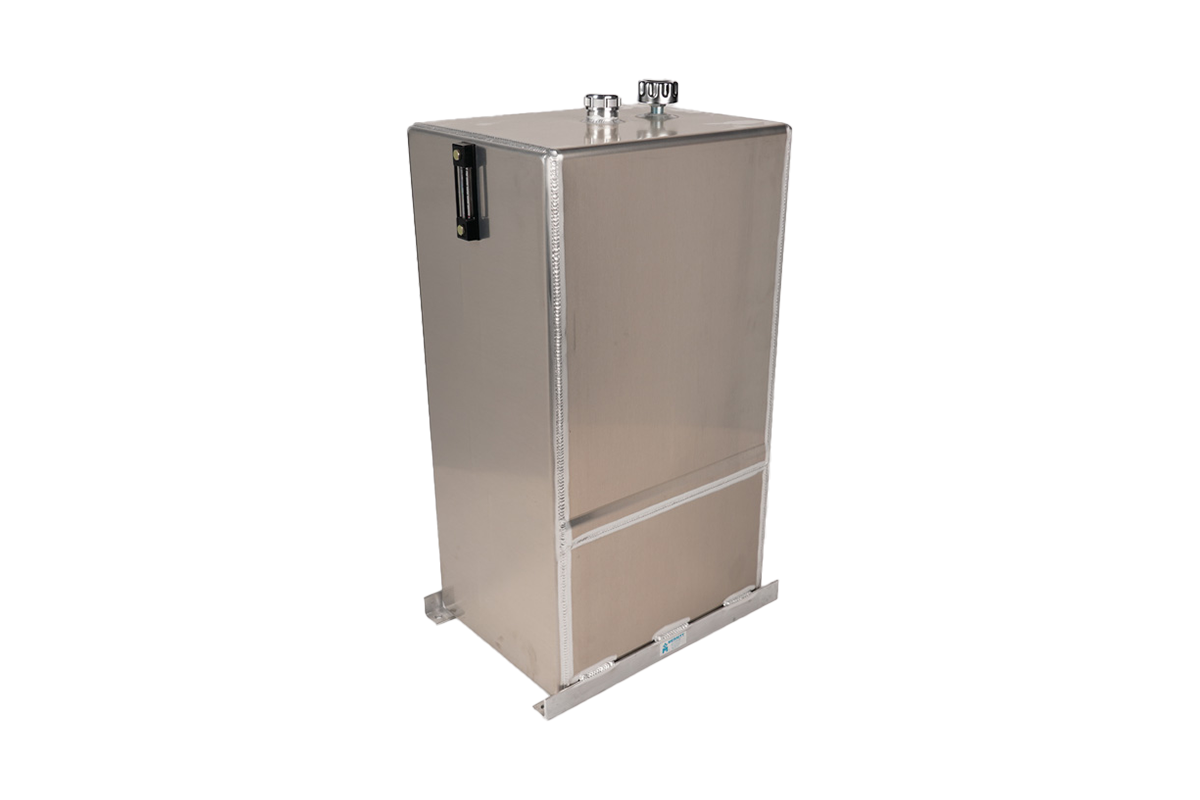

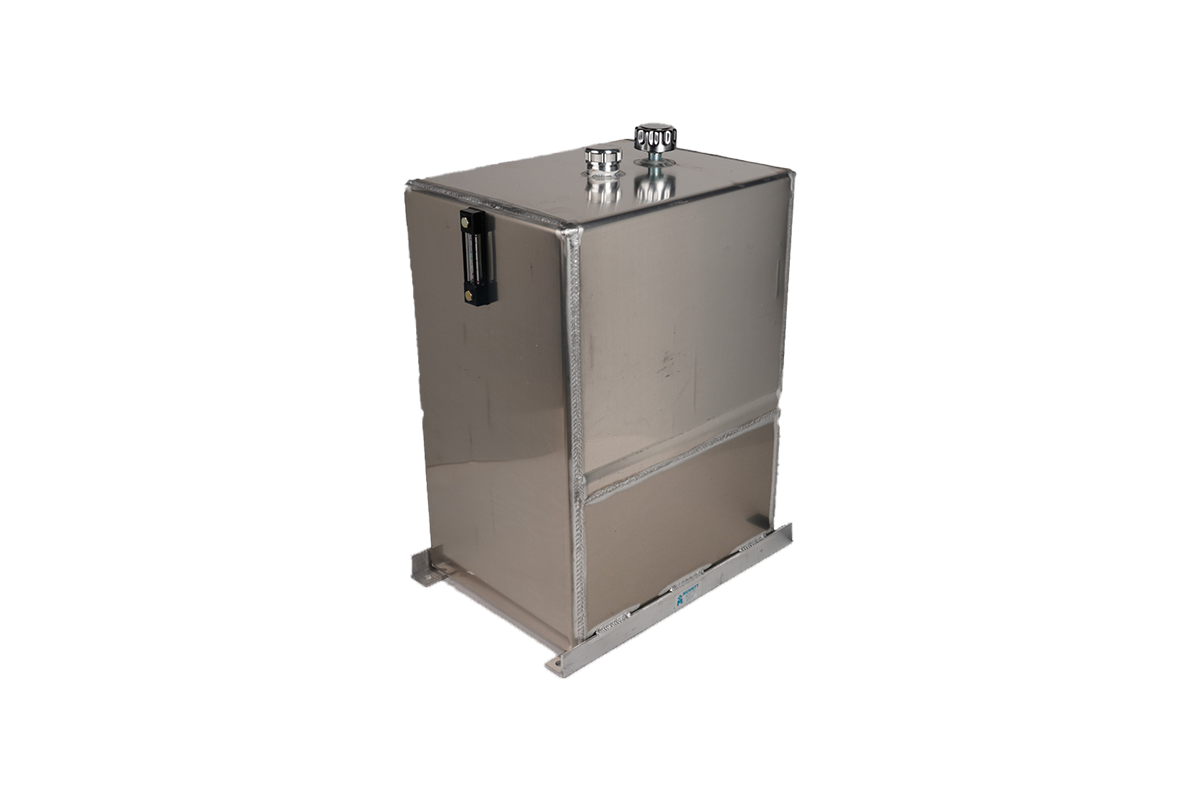

- Four Standard Models 20-, 30-, 55- and 70-gallon tanks.
- Every tank is pressure tested for leaks.
- Two 2” ports in the bottom.
- 3/4” magnetic drain plug.
- Raised filler neck with O-ring sealed anodized cap for a cleaner system.
- 3/4” vent.
- 3/16” aluminum for strength.

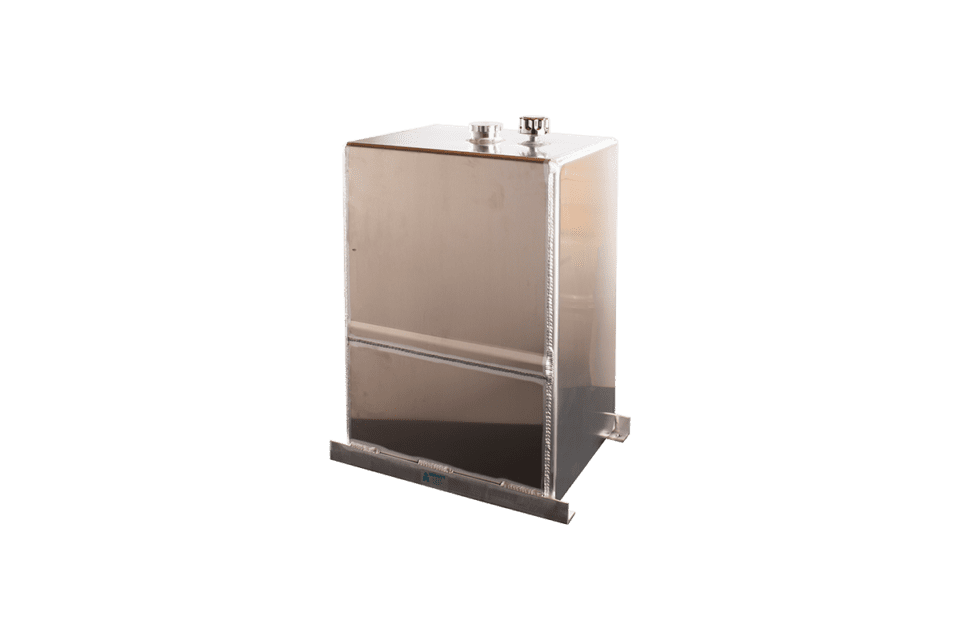

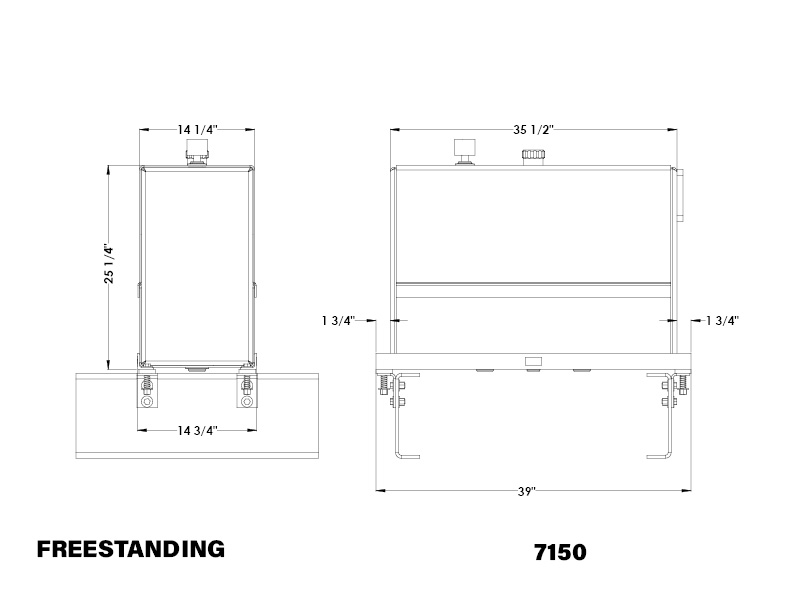

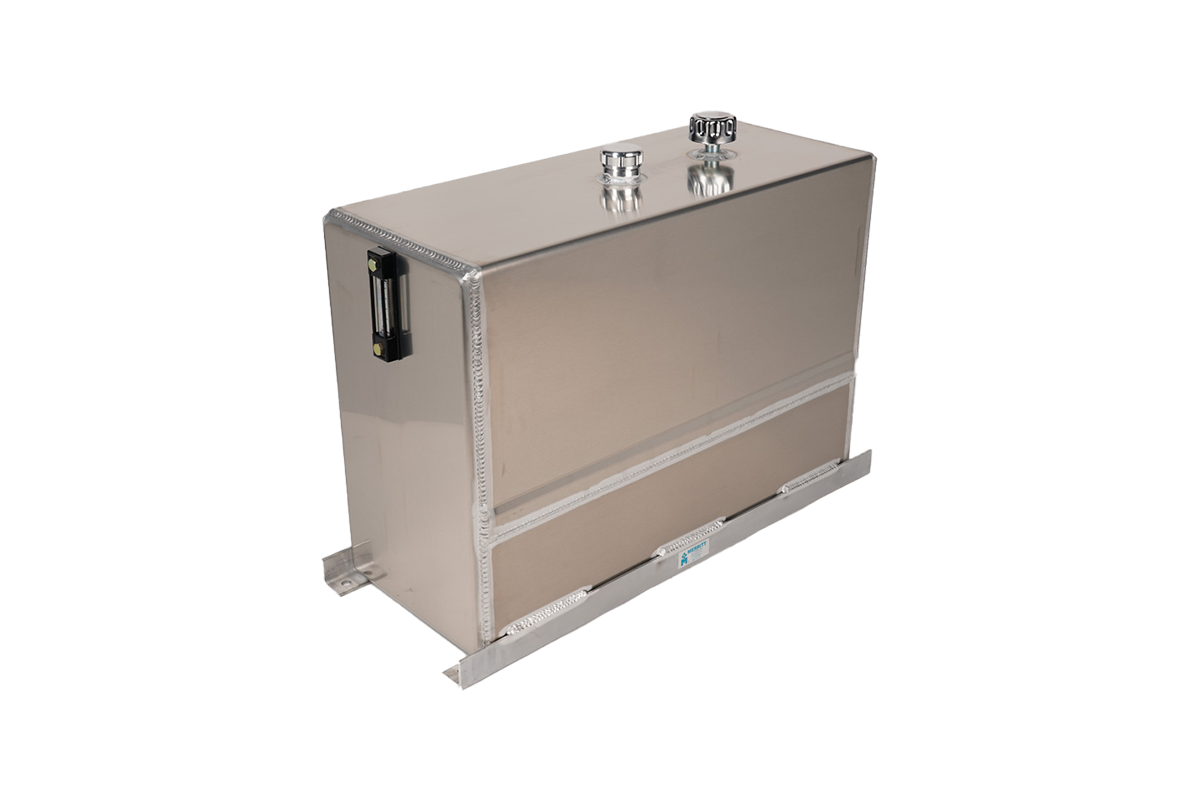

Freestanding Hydraulic Tank
- Sleek, Standalone Design: The Freestanding Tank is designed to mount independently behind your cab, providing a functional yet stylish addition to your truck.
- Engineered for Reliability: Fully baffled and pressure-tested to ensure balanced, secure fluid containment.
- Built-in Features for Convenience: Includes a filler breather cap and an oil level and temperature gauge for easy monitoring and maintenance.
- Ample Capacity and Sturdy Construction: With a 50-gallon capacity, the Freestanding Tank is built with durable materials, a welded-on bracket for secure frame mounting, and a design made to withstand tough conditions.
- Complete Installation Kit: Everything you need to mount your Freestanding Hydraulic Tank with ease – frame bolts not included; Merritt recommends using AT MINIMUM – Grade 8 Bolts.
Product Variations Filter
Product Variations
| Dimensions | Capacity | ||
|---|---|---|---|
|
|
N/A | — |
|
|
|

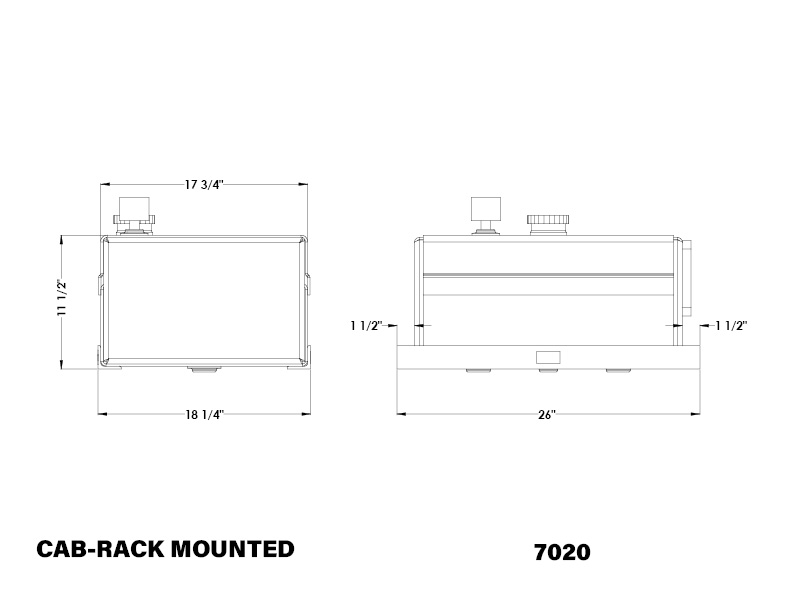

11.5 (H) × 18.25 (D) × 26 (L) in | — |
|
|
|

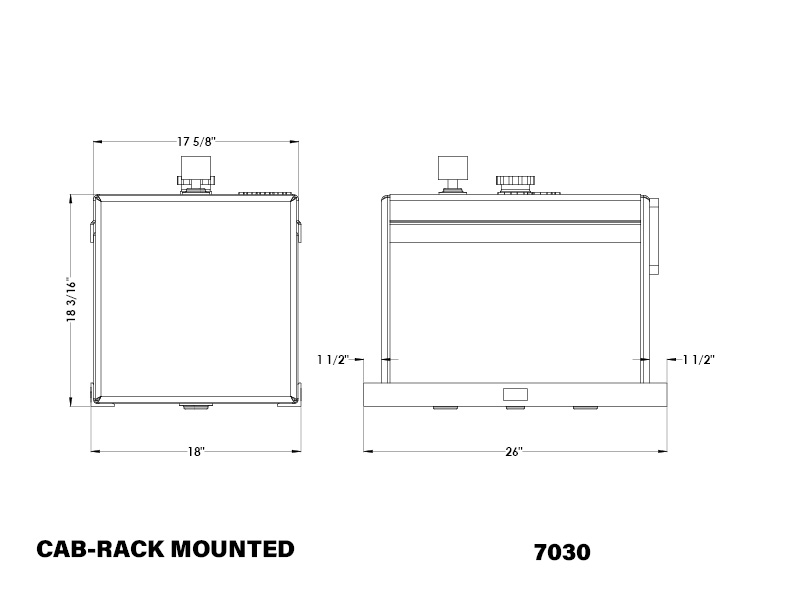

18.25 (H) × 18 (D) × 26 (L) in | — |
|
|
|

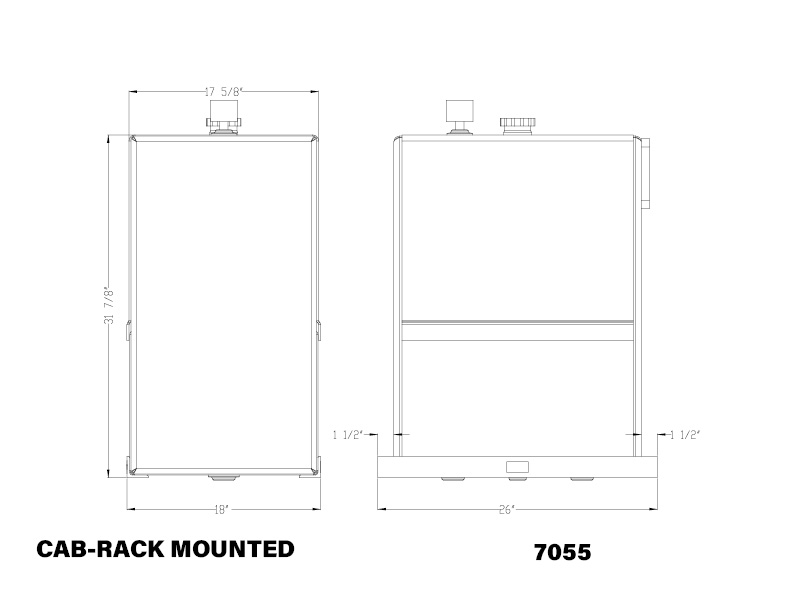

31.75 (H) × 18 (D) × 26 (L) in | — |
|
|
|

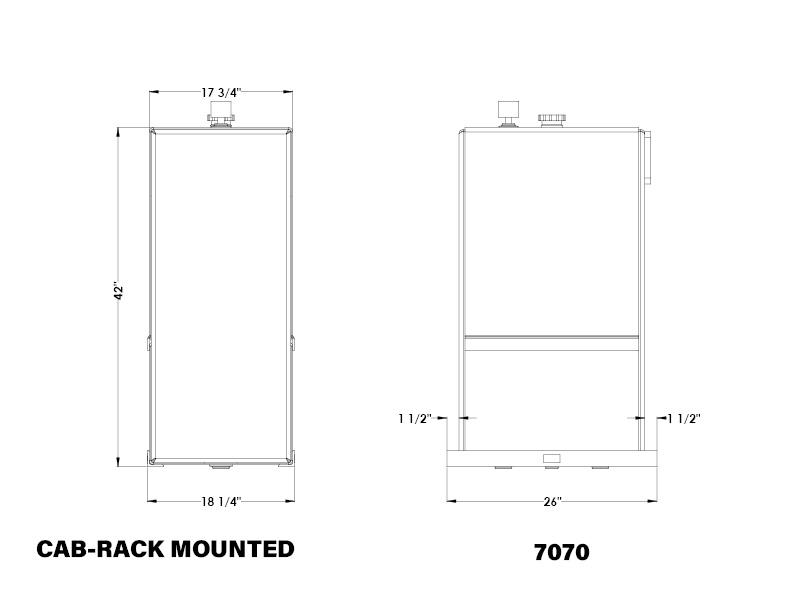

42 (H) × 18.25 (D) × 26 (L) in | — |
|
There is no products matching your filter selection. Try another combination or contact us.
Showing 5 of 5 items
Mounting hardware included:
NUT, 1/2” NF LOCK NYLON INSERT
BOLT 1/2” x 3-1/2”
BUMPER, 2” ODX1/2”IDX1/2TK NEO
SPRING, COMP .576 ID X 1.665 LG BLK ZN
WASHER, 1/2 FLAT USS ZINC
TRAY, BASE MOUNT
