E-Z Fender Mounting System for Trucks
Dyna-Light and Diamond Back CR’s have been tested by an independent engineering firm for maximum uniformly distributed static load.
Dyna-Tube Extrusion, aerodynamic radius corner shape, high strength – low weight.
New T-Beam extrusion provides for a better weight to strength ratio, for improved load resistance. This allows Merritt to decrease T-beam profile by one inch, allowing greater swing room clearance.
| Order # | Description | Shipping Weight |
|---|---|---|
| 579-2 | Mounting System (Shipped as a set – 2 per box) | 7 Lbs. |
E-Z HD Fender Mounting Kit
Proven in the toughest environment in the world. Ideal for heavy-duty trucks, thriving in harsh environments.
Adapt a bracket to your application- two models to choose from. Light, very strong and highly durable.
Normal hand tools can be used for installation. Each Heavy Duty Fender Mounting kit will mount two quarter fenders or one single axle fender. Can be used to mount a full fender using an E-Z Mount adjustable center bracket.
LELOX E-Z MOUNT
| Order # | Description | Shipping Weight |
|---|---|---|
| 5167-2 | Two mounting tubes, Four cast, curved fender brackets and mounting hardware | 24 Lbs. |
| 5168-2 | Two mounting tubes, Four cast, straight fender brackets and mounting hardware | 24 Lbs. |
E-Z Mount Fender Brackets
6 Models to choose from, allowing you to adapt a bracket to your application. 3 Adjustable models, giving you greater flexibility.
All E-Z Fender Mount brackets have the time tested single mounting bolt. Very Quick- Very Easy!
3 Straight models available with rubber spacers, which provide 1″ clearance between the fender and bracket, allowing dirt and gravel to pass through… makes cleaning easier.
All hardware is supplied with each bracket for mounting.
E & Z MOUNT FENDER BRACKET
| E & Z Fender Bracket – Black – 4″ Model | ||
|---|---|---|
| Order # | Description | Shipping Weight |
| 567 | Black – 4″ Model | 12 Lbs. |
| E & Z Fender Bracket – Black – 8″ Model | ||
|---|---|---|
| Order # | Description | Shipping Weight |
| 568 | Black – 8″ Model | 12 Lbs. |
| E & Z Fender Bracket – Black – 10″ Model | ||
|---|---|---|
| Order # | Description | Shipping Weight |
| 569 | Black – 10″ Model | 12 Lbs. |
| Mounting Post – Zinc Plated | ||
|---|---|---|
| Order # | Description | Shipping Weight |
| 573-2 | Zinc Plated | 2.5 Lbs. |
| Post Mount Bracket – Chrome | ||
|---|---|---|
| Order # | Description | Shipping Weight |
| 574 | Chrome | 8 Lbs. |
| Straight Bracket | ||
|---|---|---|
| Order # | Description | Shipping Weight |
| 575 | Black | 12 Lbs. |
| 576 | Chrome | 12 Lbs. |
Attention

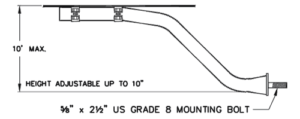

POST MOUNT BRACKET
- Allows the installer to adjust the height of a straight bracket (like EZ Mount bracket).
- Turn your 574 straight bracket into an adjustable mount, for those installations where nothing seems to work.
- Fits the new style air ride suspension systems. Bolts directly into the suspension hanger, eliminating hole drilling in the frame.
- Delivers a full 3″ sweep to allow you to find the best mounting position.
- Made from hardened billet steel for long life.
- Shipped in pairs, stocked in 12 Merritt warehouse locations.
- To be used with part numbers 574 Post Mount Bracket and 573 Post.
POST MOUNT BRACKET
OFF-SET CHASSIS PIPE
Offset Pipe Fender Bracket is designed to mount outside any fender.
Off-set chassis pipe mounts solidly to frame with single grade 8 bolt.
Installation Notes:
- It is necessary to bend TAB Lock-washers downward into the bolt to prevent unwinding.
- Torque 5/8 Nyloc nuts to 150 ft/lbs.
CAST ALUMINUM MOUNTING BRACKET ASSEMBLY
Cast Aluminum Brackets mount to the fender as shown, secure the Grub Screw to the pipe shaft, making those hard installations a breeze.
Installation Notes:
- Mounting bracket backing plate can be used as a template to drill holes in fender.
- When installing the 3/8″ x 2 1/4″ bolts, it is recommended that the bolts are not over tightened, 10inch lbs. torque.
- Secure mounting bracket to chassis pipe/tube using “Grub Screw” and 3/8″ conelok nut.
ADJUSTABLE FENDER BRACKETS
- All three Z & Z fender brackets are adjustable in length from 27″ to 30″.
- Stainless steel cap screw mounting plate bolts are included.
Straight Fender Brackets
- Mounts solidly to frame with single grade 8 bolt
- 574 Mounts to the existing stub shaft or the 573 post, making those hard installations easier
- Bracket Mounts 1″ off Fender so rocks and gravel can pass through
Installation Notes:
- Backing plate is designed to be used as a template to drill holes in fender.
- When installing the 3/8″ x 2 1/4″ bolts, it is recommended that the bolts are not over tightened, 10inch lbs. torque.
- It is necessary to bend TAB Lock-washers downward into the bolt to prevent unwinding.
- Torque 5/8 Nyloc nuts to 150ft/lbs.
